KB1025: DN126M2 Function Outputs

This article was last updated on Oct. 27, 2014, 12:47 p.m. | Print Article | Leave Feedback

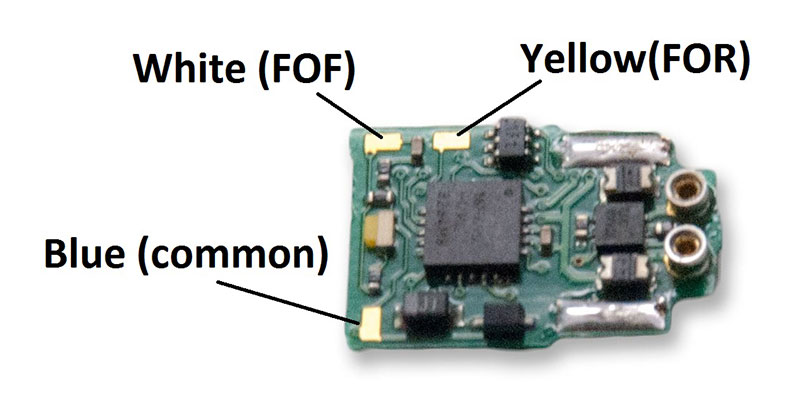

The DN126M2 decoder is a Series 6, two function decoder.  The decoder already has a Surface Mounted LED configured as the Forward Headlight.  This LED is connected to the White (F0F) function.  There are additional solder pads which will allow you to add a function for the Yellow (F0R) Rear headlight or it can be used to add another function such as a Beacon or Strobe.  The functions can be programmed to suite your particular needs.





Remember to add the appropriate current limiting resistor for the lamp or LED that you're using.
