SCFX Super Chief Xtra 5 Amp

This product has been replaced by the Evolution Advanced 5A/8A Starter Set (EVO) and is no longer available. Click here to view the EVO.
<< Browse Other Retired Products in Starter Sets
<< Browse Current Products in Starter Sets
Price: $455.00 MSRP
Super Chief Xtra 5 Amp

Everything you need to get started with Advanced Digitrax Command Control.

Super Chief Xtra is perfect for most home and club layouts.

It offers excellent speed control, prototypical consisting, the full range of programming features and much more.

Maximum capacity, maximum features.  Take it to the Max with Super Chief Xtra!

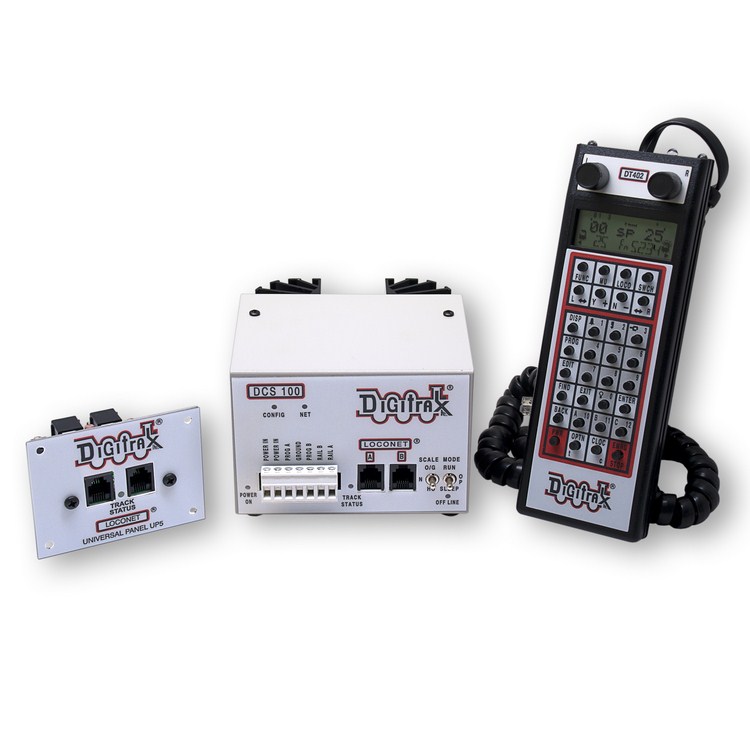

Super Chief Xtra Set Includes:

  • DCS100 Command Station/Booster With Intelligent AutoReverse

  • DT402 Super LocoNet Throttle (Infra ready)

  • UP5 Universal Panel

  • One LT1 LocoNet Cable & Decoder Test Kit

  • Super Chief Xtra Manual

  • Digitrax Decoder Manual

The DT402 Super Throttle & DCS100 Command Station Offer

  • User interface makes DCC simple.

  • Dual throttle knobs give you control of two locos at the same time and makes consisting easy.

  • Full numeric key pad for loco selection, function control and decoder programming.

  • Simplified 4 digit addressing.

  • Easy address browsing and selection.

  • User friendly text messages to guide you.

  • Click encoders for smooth speed control.

  • Multi-line LCD display puts all information at your fingertips.

  • Convenient step-by-step throttle option set up

  • Infra-ready out of the box (with UR90 sold separatly).

  • 5 Amp Duplex Radio version also available.

  • Ready for transponding and cab signaling.

  • Simplified throttle option setup.

Big System Capacity for Big Layouts

  • Run up to 120 addresses at the same time on your system.

  • Run up to 120 throttles at the same time on your system.

Over 9000 Locomotive Addresses

  • Address 00 for operation of one loco or MU consist without decoders

  • Two Digit Addressing is easy to use. (Address 01-127)

  • Four Digit Addressing lets you use the road number of your engines as their addresses. (Address 0128-9000+)

5 Amps of Power to Run More Trains

  • Selectable Scale Voltage for Safe Operation in ALL Scales

  • 8 Amp Version Also Available

Function Control

  • Control 30 functions (F0Fwd, F0Rev, and F1-F28).

  • Function 2 is a special non-latching key that can be used to sound the horn for as long as the key is held down.

  • Constant brightness lighting. Headlights can be directional or independently controlled (depending on decoder capabilities).

Two DCC Outputs are Better than One!

  • Use one output for programming decoders while the other runs the layout. No need to shut down the layout to program decoders!

  • Use one output for a braking section while the other runs the layout.

Decoder Programming

  • Built in read/write programmer lets you program and read back CV values.

  • Supports Paged programming (Digitrax preferred method). Also supports direct, register and ops mode programming

Consisting

  • Supports Universal consisting (Digitrax preferred method). Allows ALL locos to be consisted prototypically, even analog locos.

  • Advanced consisting and Basic consisting, too!

  • Nested consisting where consists can be consisted together.

Stationary Decoders, Turnout Control & Turnout Position Reporting

  • Access to stationary decoder control for turnouts and other devices.

  • DT402 reports turnout position based on last command sent.

  • Control 999 stationary decoder addresses.

Routes

  • Turnout List/Route capability to simplify complex yard operations.

Customizable System Options

  • User adjustable voltage trim.

  • Turn audible warnings on or off.

  • Set up purging options.

  • Multi-format command station mode.

  • DCS100 is the most flexible command station on the market.

UP5 Universal Panel

  • Makes LocoNet hook up simple!

  • 2 LocoNet jacks for hooking up your LocoNet network.

  • 3 throttle jacks for hooking up throttles and other non-RailSync devices.

Expandability

  • Super Chief Xtra is just the beginning for large, complex layouts that emphasize prototypical operations.

  • With LocoNet you can add more boosters, throttles, power management, detection, transponding, signaling and much more.

  • To expand Super Empire Builder Xtra for all the capabilities of the Super Chief, simply add a DCS100.

Note: Super Chief Xtra Sets require a power supply that is sold separately by Digitrax or may be supplied by customer.



Specifications

Warranty
No Worries Warranty (read more)



Digitrax gives a one year "No Worries" Warranty against manufacturing defects and accidental customer damage

on all Digitrax command stations, boosters, throttles, decoders, power supplies and layout control devices.

That's it! A simple, straightforward warranty with no tricky language!

Repairs are simple, too!  Just fill out the form and return your items directly to Digitrax for repair.  We'll get them fixed up and return them to you as quickly as possible.  Please DO NOT return items for repair to the place of purchase.

Make Sure Your Item Needs To Be Repaired Before Sending It To Us!  Many of the units we receive for repair do not need any repairs at all. Before you send any units for repair, please take a few minutes to review our Support Options.

1.  Check the Tech Support Depot for help.  Search for troubleshooting guides.

2.  Click here to send Digitrax Tech Support a message.

Please give your name, e-mail address, phone number and when is the best time to contact you.  Please give a complete description of the issue you are having.

Many problems are easily resolved by contacting Digitrax Tech Support without having to send in your unit.

Note: Some Digitrax products are no longer repairable due to unavailability of repair parts. Un-repairable items will be returned to you at no charge with no repairs made.

Please Note:  Most of our products are not user serviceable. If a defect or accidental damage occurs, return the unit directly to Digitrax for service.  Please do not open the Command Station/Boosters (except for making voltage adjustments or changing batteries per the manuals).  Please do not remove the shrink wrap protective sleeves from the Digitrax decoders. Shrink may be peeled back to expose pads for adding function wires.

Accessory items that are not covered under the No Worries Warranty carry a 90 day warranty against defects in materials and workmanship.  This includes speakers, wire, cables, battery covers, etc.

Intentional damage and customer modifications outside the scope of instructions provided with the product are not covered by this warranty.

Do NOT send a locomotive with your decoder. If a locomotive is sent to Digitrax, Digitrax will ship the entire package back, unrepaired.
