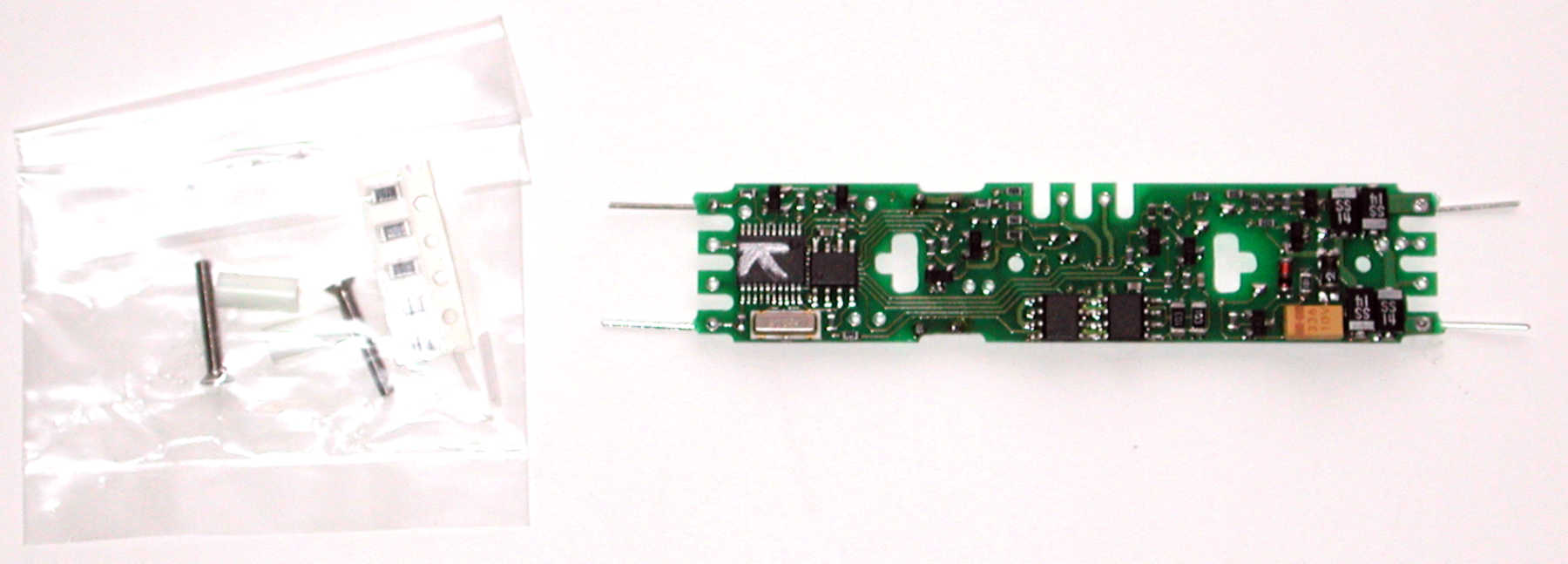

DH150K 1.5 Amp DCC Decoder for Some Atlas, Kato and Other HO Scale Locomotives
This product has been replaced by the 1.5 Amp Decoder fits many Kato HO Diesel Locomotives (DH163K0) and is no longer available. Click here to view the DH163K0.
Board Replacement 1.5 Amp DCC Board Replacement Decoder for HO Kato, Stewart & others.
Retired in 2002
Specifications
- Current Rating-Motor
- 1.5 Amp (2.0 Peak)
- Size
- 2.877” x .667” x .173” with .5” with stiff wires on each end (73mm x 16.9mm x 4.4mm with 12.7mm)
- Installation
- Board Replacement (read more)
These decoders are made to fit specific locomtoive chassis. Locomotives that have circuit boards that can have decoders installed in place of the original circuit board are made by many manufacturers.
In some cases, locomotive modifications, motor isolation and additional soldering may be required during installation of this type of decoder. Function leads can be added to these decoders using solder pads available on the decoder.
See the instruction sheet for the particular decoder you are using for specific instructions.
Sometimes these are called plug n' play or drop in decoders.
- Function Outputs
- 5
- Function Type
- 1- Standard 4- FX
- Replaced by
- DH163K0
- Current Rating-Functions
- 200mA
