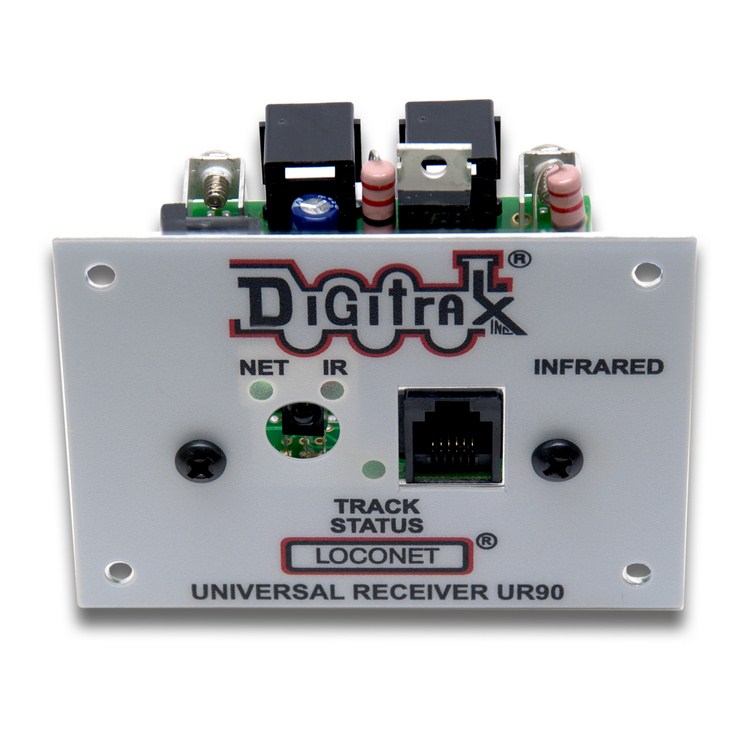

UR90 Infrared Receiver Front Panel
Cost effective wireless operation with infrared technology
UR90 is a front panel unit that is an infrared receiver. All current production Digitrax throttles are factory equipped with infrared capabillity, just add one or more UR90's and you're wireless!
Infrared is a line of site technology so you will probably need more than one UR90 for your layout.
UR90 also includes a LocoNet Throttle jack on the front for plugging in your throttles as needed. In addition there are two LocoNet Jacks on the back for hooking up to other LocoNet devices on your layout.
UR90 Features:
-
Plug 'N Play with any LocoNet system
-
Just add one or more UR90s to enable infrared operation
-
Most Digitrax throttles are Infra-Ready
-
Supports approximately 10 Digitrax IR throttles
-
More UR90s my be added to increase functionality of Infrared Operation
-
Requires 12-14 volt PS14 type power supply
- One RJ12 6 pin Throttle jacks in the front of the panel for hooking up throttles and other LocoNet devices that do not use RailSync.
-
Two RJ12 6 pin LocoNet jacks in the back of the panel for hooking up LocoNet devices that use RailSync.
-
Gives your layout a professionally finished look.
-
Indicator LED that shows the power state of a local track section.
-
Two #6-32 right angle screw terminals for local track connections for power and diagnostics.
Note: Most layouts require more than one UR90 because Infrared is line of sight and the UR90s must be able to "see" the signals for reliable operation. Recommended for indoor use only.
Specifications
- Warranty
- No Worries Warranty (read more)
Digitrax gives a one year "No Worries" Warranty against manufacturing defects and accidental customer damage
on all Digitrax command stations, boosters, throttles, decoders, power supplies and layout control devices.
That's it! A simple, straightforward warranty with no tricky language!
Repairs are simple, too! Just fill out the form and return your items directly to Digitrax for repair. We'll get them fixed up and return them to you as quickly as possible. Please DO NOT return items for repair to the place of purchase.
Make Sure Your Item Needs To Be Repaired Before Sending It To Us! Many of the units we receive for repair do not need any repairs at all. Before you send any units for repair, please take a few minutes to review our Support Options.
1. Check the Tech Support Depot for help. Search for troubleshooting guides.
2. Click here to send Digitrax Tech Support a message.
Please give your name, e-mail address, phone number and when is the best time to contact you. Please give a complete description of the issue you are having.
Many problems are easily resolved by contacting Digitrax Tech Support without having to send in your unit.
Note: Some Digitrax products are no longer repairable due to unavailability of repair parts. Un-repairable items will be returned to you at no charge with no repairs made.
Please Note: Most of our products are not user serviceable. If a defect or accidental damage occurs, return the unit directly to Digitrax for service. Please do not open the Command Station/Boosters (except for making voltage adjustments or changing batteries per the manuals). Please do not remove the shrink wrap protective sleeves from the Digitrax decoders. Shrink may be peeled back to expose pads for adding function wires.
Accessory items that are not covered under the No Worries Warranty carry a 90 day warranty against defects in materials and workmanship. This includes speakers, wire, cables, battery covers, etc.
Intentional damage and customer modifications outside the scope of instructions provided with the product are not covered by this warranty.
Do NOT send a locomotive with your decoder. If a locomotive is sent to Digitrax, Digitrax will ship the entire package back, unrepaired.
